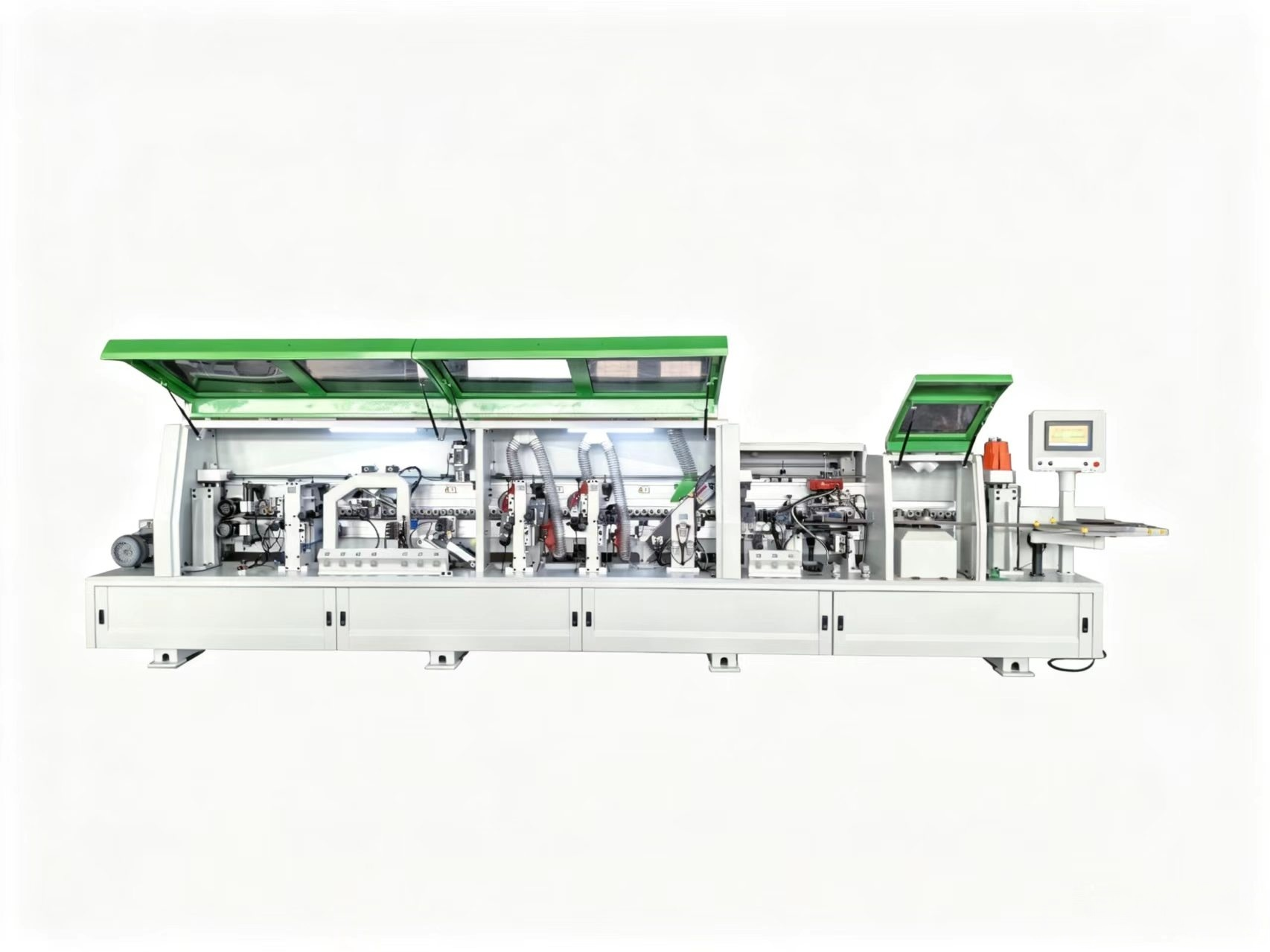

LA-800SH

PLC: Delta
Touch screen: Kunlun Tongtai 10-inch
Electrical components: Schneider
High speed motor: CC Motor
Function: Pre-milling, gluing, end cutting, rough trimming, fine trimming, tracking chamfering, edge scraping, polishing
Pre-milling motor power: 2.2kw×2
Glue coating motor power: 0.55kw
End cutting motor power: 0.37kw×2
Rough trimming motor power: 0.55kw×2
Fine trimming motor power: 0.55kw×2
Tracking chamfering motor power: 0.3kw×2
Polishing motor power: 0.37kw×2
Conveying motor power: 3.7kw
Lifting motor power: 0.37kw
Heating power: 1.5KW
Total machine power: 16kw
Feeding speed: HIGH-MIDDLE-LOW speed
Machine weight: 2500KG
Overall dimension: 6800×950×1650mm
