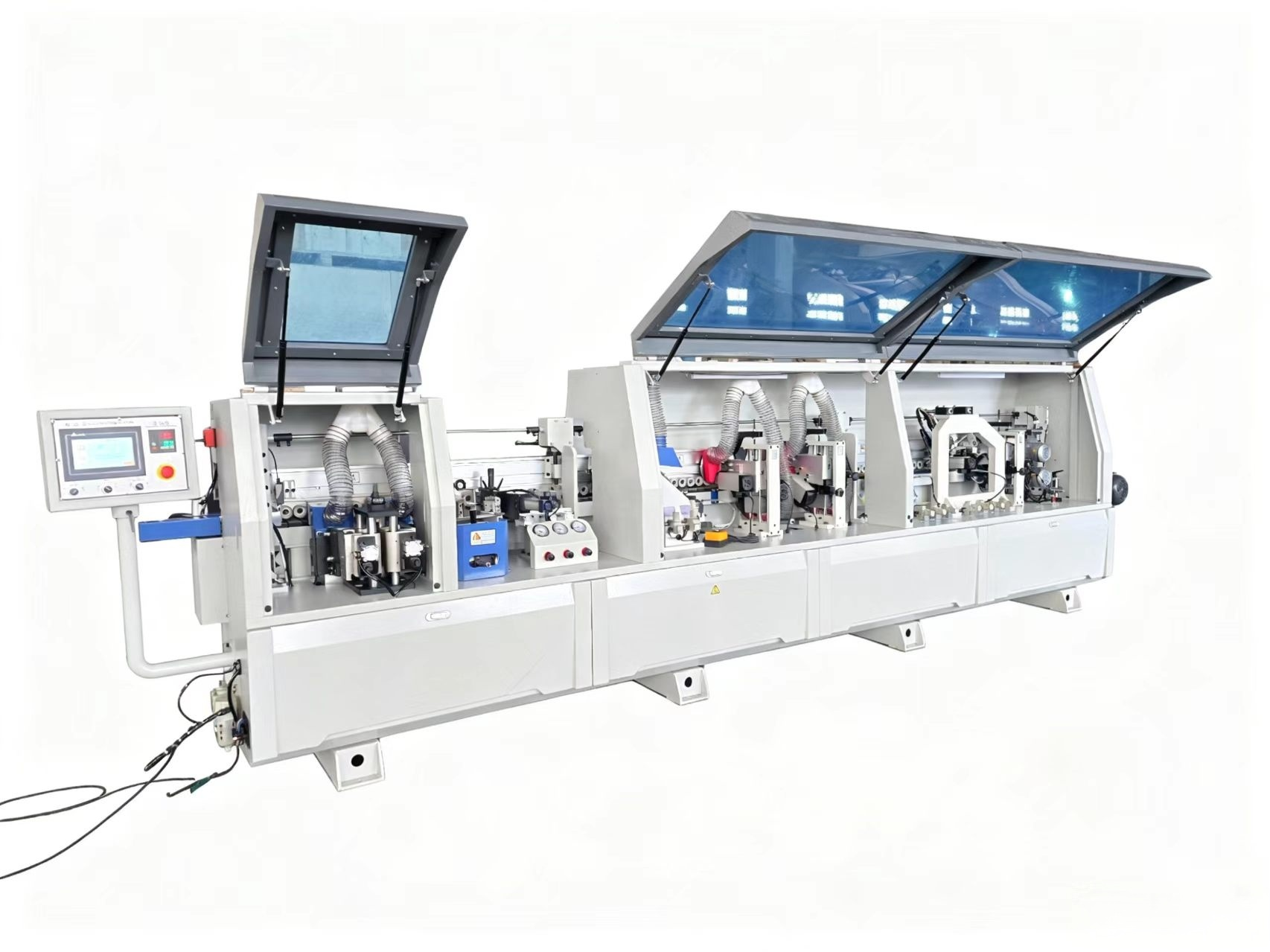

LA-800H

Functions:

Pre-milling → Gluing → End Trimming → Rough Trimming → Fine Trimming → Chamfering → Scrapping → Polishing

Motor Power Parameters

– Pre-milling motor: 1.8kW×2

– Gluing motor: 0.37kW

– End trimming motor: 0.37kW×2

– Rough trimming motor: 0.55kW×2

– Fine trimming motor: 0.55kW×2

– Tracking chamfer motor: 0.3kW×2

– Polishing motor: 0.18kW×2

– Feeding conveyor motor: 1.5kW

– Lifting motor: 0.37kW

– Heating motor: 1.5kW

– Total installed power: 12kW

– Feeding speed: High / Medium / Low adjustable

– Machine weight: 2000KG

– Overall dimension: 5500×850×1650mm
